SUPER ROLLER DIE CUTTER”KANTAN”.

KUDO KIKAIKAIHATSU CO.,LTD.
Has been focused on the development of Corrugated board processing machinery since our establishment in 1965.
Over 600s “KANTAN” have been installed since the first launched in 1988.

SUPER ROLLER DIE CUTTER “KANTAN” IS CORRUGATED BOARD PROCESSING MACHINE.

  • 1Simple controls : Only unskilled operator required.
  • 2“KANTAN” supports wide range of sheet types from corrugated board to plastic corrugated.( also double wall. triple wall)
  • 3Cutting die changed in seconds. No setting-up required.
  • 4Size of cutting die only limited by width of the machine.
  • 5The sheets can be processed up to W 2000× L 4000mm.

KT1900

KANTANKT1900DETAIL

Ideal for small lot die cutting.
MOVIE

KW2300

KANTANKW2300DETAIL

Ideal for large size die cutting.
MOVIE

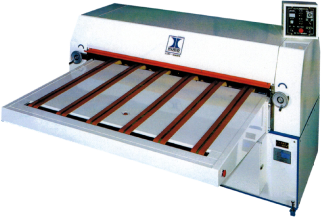

KANTAN KT1900

【Processed materials】
Corrugated board, Plastic corrugated, Cardboard.

Sheet size Mini 200×300㎜
Max 1800×3000㎜
Moving speed Variable
FLOOR PLAN (A)2,930m/m
KT-1300：(B)1,980m/m
KT-1600：(B)2,280m/m
KT-1900：(B)2,580m/m

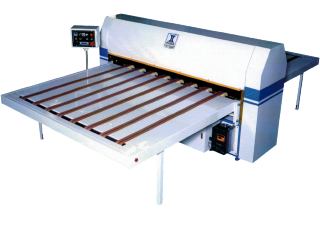

KANTAN KW2300

【Processed materials】
Corrugated board, Plastic corrugated, Cardboard.
Double wall, Triple wall.

Sheet size Mini 400×500㎜
Max 2000×4000㎜
Moving speed Variable
FLOOR PLAN (A)4,700m/m
KW-1600：(B)2,350m/m
KW-1900：(B)2,650m/m
KW-2300：(B)3,050m/m
